THR-Q160
0.00
0.00

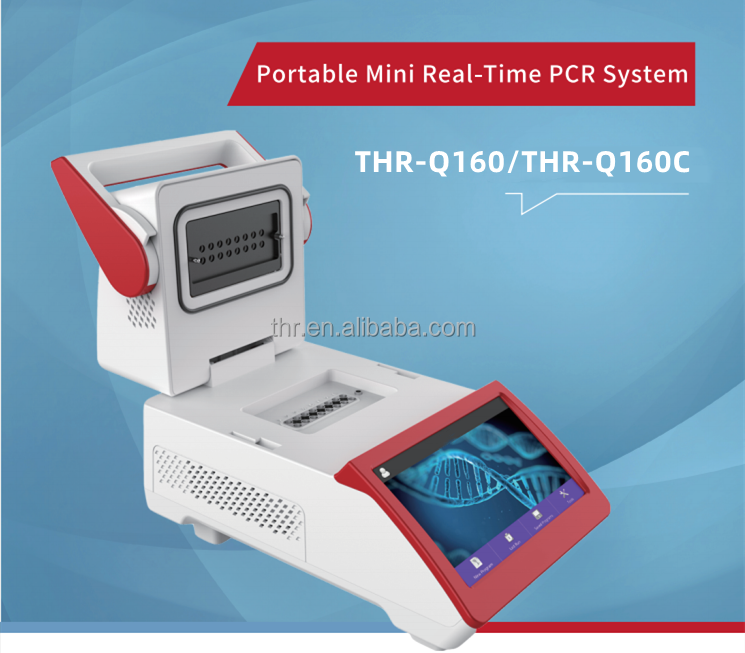

THR-Q160 16wells*0.1ml Portable Mini Real-Time PCR System
Fluorescence Quantitative PCR DNA Detector
SOFTWARE FUNCTION
1.All operations can be done with the built-in 7” touch screen, no need for connecting a personal computer.
2.Simple and intuitive program,qPCR plate setup, easy to use, without prior reading the user guide thorough-ly.
3.Standard curves for absolute quantification.Melt-curve to verify product identity.
4.The software directly gives an intuitive yes or no result, so users don't have to think about com-plicated software operations and parameter settings,it's very easy to get started.At thesame time, the automatic judgment of the soft-ware can also avoid the misjudgment caused by the manual judgment.
5.Fluorescence signals for all wells are of outstanding uniformitv,without edge effect.
6.Accurate quantification by standard curve.
FAST
1. Fast ramping rate of up to 5°C/sec.
2.Operationon instrument without PC
3. Innovative SSLP™ CCD imaging technology for qPCR, fluorescence of all sample holes is detected at the same time.
4. 16 wells 2/4 channels optional.
1. Fast ramping rate of up to 5°C/sec.
2.Operationon instrument without PC
3. Innovative SSLP™ CCD imaging technology for qPCR, fluorescence of all sample holes is detected at the same time.
4. 16 wells 2/4 channels optional.
ACCURATE
1. T-Optical TM top detection technology, white PCR tube can be used, with better sensibility.
2. Long-life Peltier technology with more than 1 million thermal cycles.
3. Fluorescence signals of outstanding uniformity for all wells, without edge effect.
1. T-Optical TM top detection technology, white PCR tube can be used, with better sensibility.
2. Long-life Peltier technology with more than 1 million thermal cycles.
3. Fluorescence signals of outstanding uniformity for all wells, without edge effect.
STABLE
1. Optical system solid state design, no moving parts.
2. Non-mechanical scanning parts, non PMT design.
3. Reliable design greatly reducing maintenance costs.
LIGHT
1. Small size, light weight (only 3.6KG), easily portable.
2. Optional mobile power supply for outdoor work.
1. Optical system solid state design, no moving parts.
2. Non-mechanical scanning parts, non PMT design.
3. Reliable design greatly reducing maintenance costs.
LIGHT
1. Small size, light weight (only 3.6KG), easily portable.
2. Optional mobile power supply for outdoor work.
Specification
Model | THR-Q160/THR-Q160C/Q160CR(for research only) |
PERFORMANCE | |
Sample Block Capacity | 16 wells *0.1ml |
Reaction Volume | 10-100ul |
Tubes Option | Low-profile white 0.1 ml PCR tube /8-tube strips with optical flat cap |
Healing &Cooling Technology | New generation Peltier technology allow 1.000.000 cycles |
Display | 7”Color TFT Touch Screen, Edit, run, and view results at a glance |
Optical System | SSLP™ CCD imaging technology |
Certified | CE-IVD/Non CE-IVD |
TEMPERATURE | |
Block Temp.Range | 4℃—100℃ |
Max.Heating Rate | 5℃/sec |
Max.Cooling Rate | 4℃/sec |
Temp.Uniformity | ±0.25℃ (at 90℃) |
Temp.Accuracy | ±0.25℃ (10 seconds after reach 90℃) |
Display Resolution | 0.1℃ |
Heat Lid Temp.Range | 30℃~112℃ |
Temp.Control Mode | Block & Sim-tube mode |
FLUORESCENCE DETECTION | |
Excitation | Long life LEDs |
Detection | CCDs |
Dynamic Range | 1—10¹º |
Detection Sensitivity | Detects 1 copy |
Fluorescence Detection Type | T-Optical™ top excitation＆detection technology |
Calibrated Dyes at Installation | F1：FAM、SYBR Green F2：VIC、HEX、JOE、CY3、NED F3：ROX、TEXAS-RED F4 ：CY5、Quasar670 |
Fluorescence Excitation Range | 300-800nm |
Fluorescence Detection Range | 500-800nm |
Date Export Formats | TXT, PDF, WORD |
OTHER EATURES | |
Power | Global switch power supply:85V-265V，50-60Hz |
Consumption | 220W |
Net Weight | 3.6KG |
Dimensions(L×W×H) | 305×179×186mm |
Communications | USB 2.0 & LAN, export date via USB flash drive |
