THR-T821
0.00
0.00

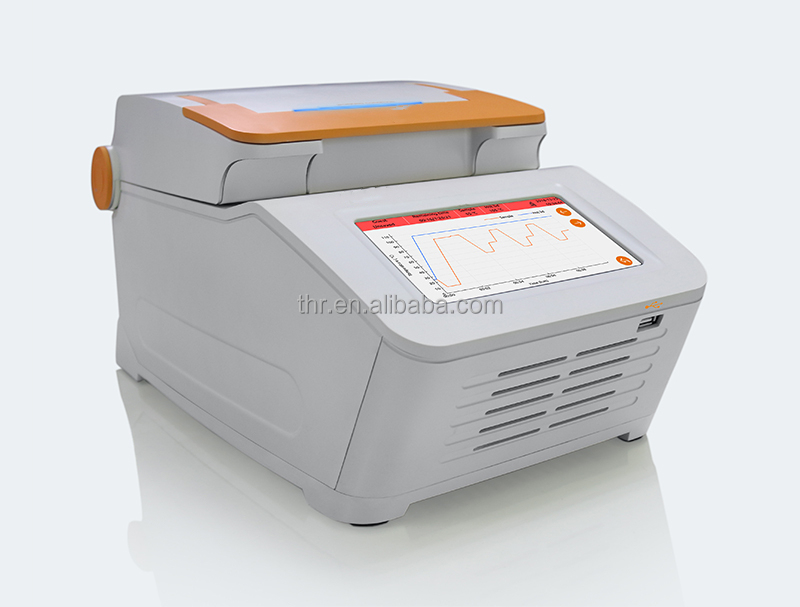

THR-T821,a beautiful and smart thermal cycler. While inheriting the classical features, more intelligent, humanized and practical technological elements are added to provide a very smooth sense of operation.
Features:

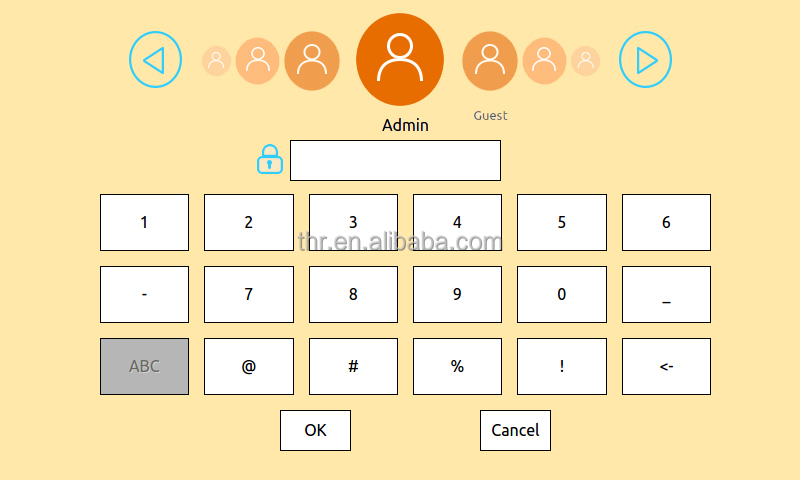

*Personal Documents Management System:
●Personal password ●Personal interface ●Personal template ●Personal file ●Personal log
Users can create personal accounts and set personal passwords to protect data individually.
Users can create personal accounts and set personal passwords to protect data individually.
Only you or your authorized person can use the program to prevent others from modifying or mistakenly removing programs.
Switchable multi-interface:

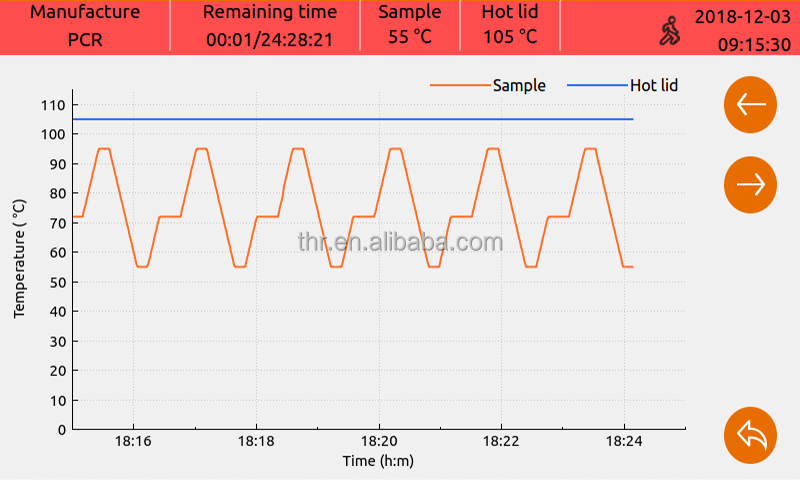

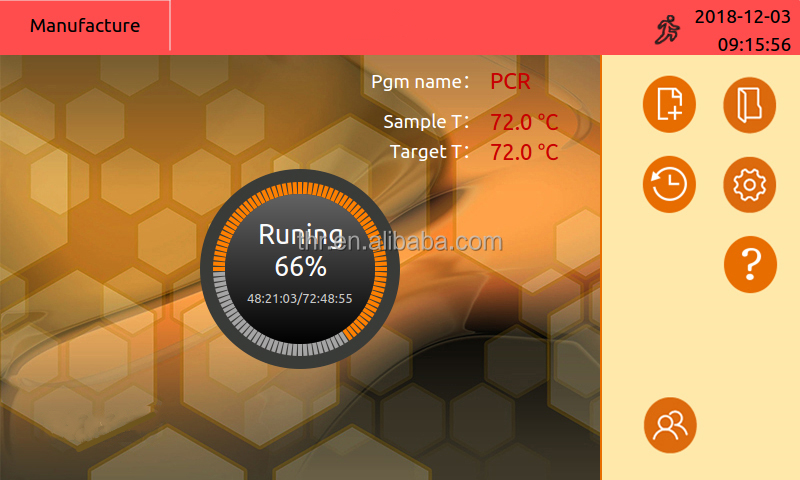

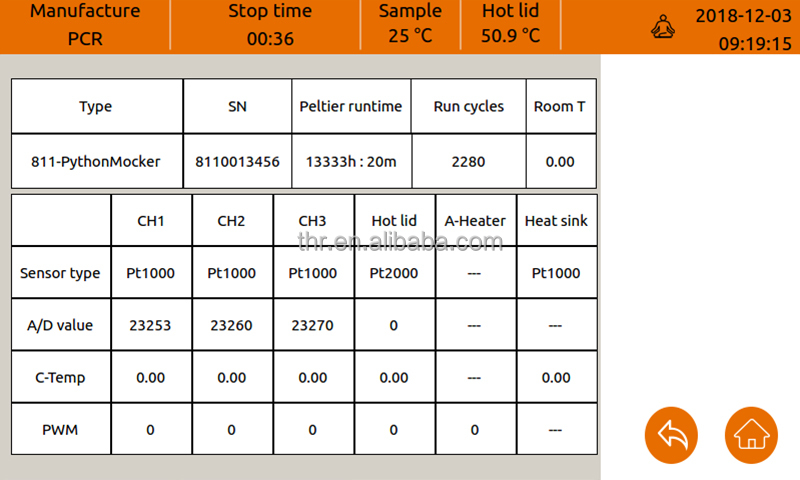

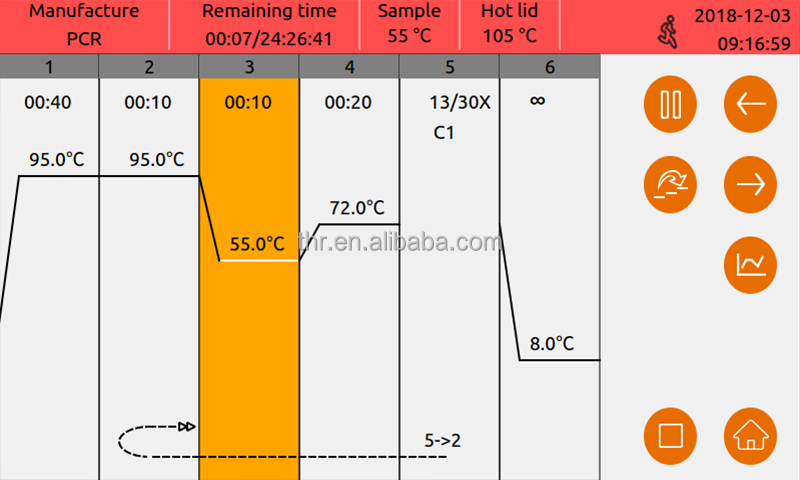

● Concise main interface ● Dynamic step ● Dynamic curve ● Engineering interface
Switch interface to meet various needs such as browsing, observation, maintenance, and research.
Smart sense of operation：
Switch interface to meet various needs such as browsing, observation, maintenance, and research.
Smart sense of operation：

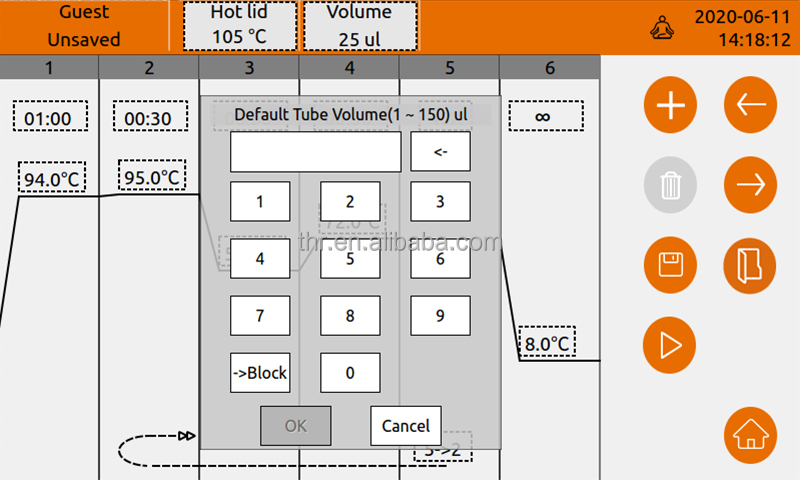

● Windows style interface ● Programming on template ● Guided setup ● Dynamic color ● Animation runner ● Auto hot-lid ●Used file list
Especially for industrial users:

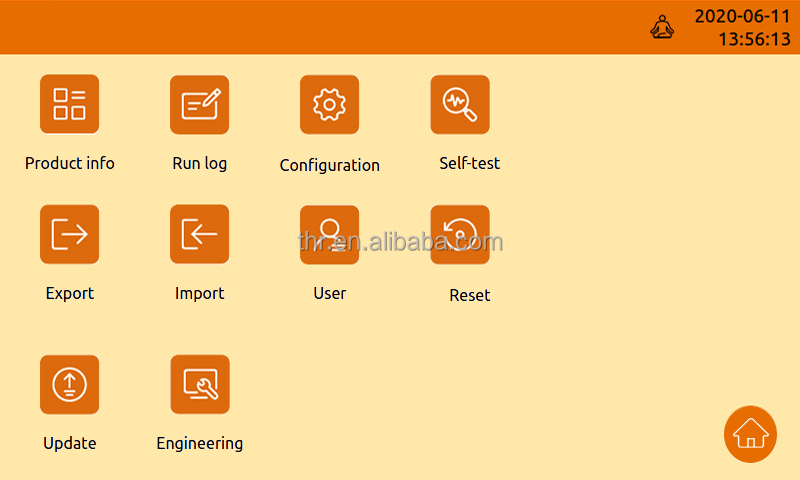

● Program protection ● One-click import/export ● U disk upgrade ● Self-test ● Run log ● Maintenance record ● Temperature calibration

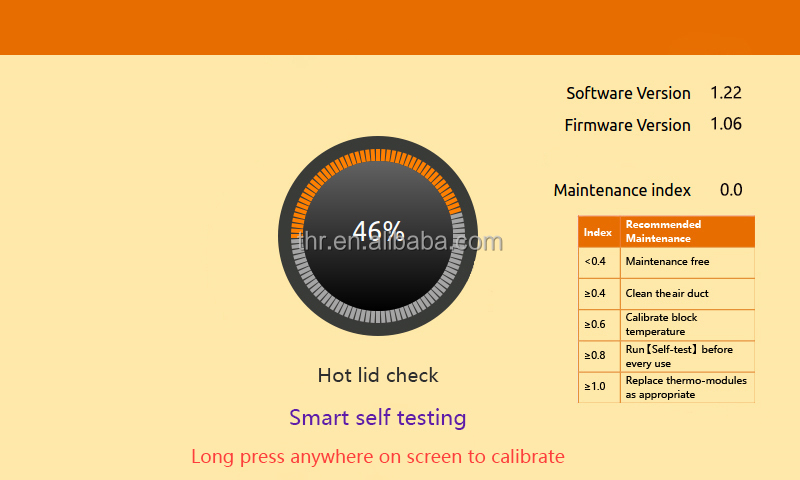

Maintenance reminder:
Maintenance reminder:
The PC series of long life thermal module will bring more than 30% life extension to the machine than the previous generation.
Maintenance reminder function automatically evaluates Peltier's operation status and maintenance index according to the frequency of use of the instrument, and gives maintenance suggestions, so that you can grasp the reliability of the instrument, which is conducive to the successful completion of the experiment.
Maintenance reminder function automatically evaluates Peltier's operation status and maintenance index according to the frequency of use of the instrument, and gives maintenance suggestions, so that you can grasp the reliability of the instrument, which is conducive to the successful completion of the experiment.

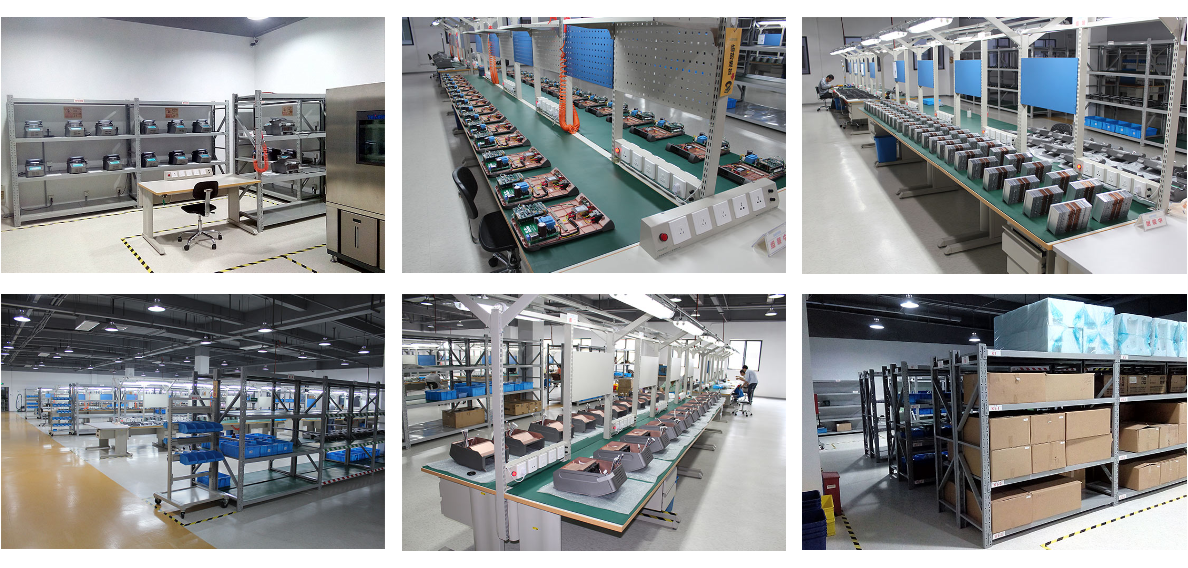

Strict Quality Control
A series of rigorous quality tests should be carried out before each machine leaves the factory, including low and high temperature test, agingtest,EMC test and so on, to ensure the reliability of the quality of the machine leaving the factory.

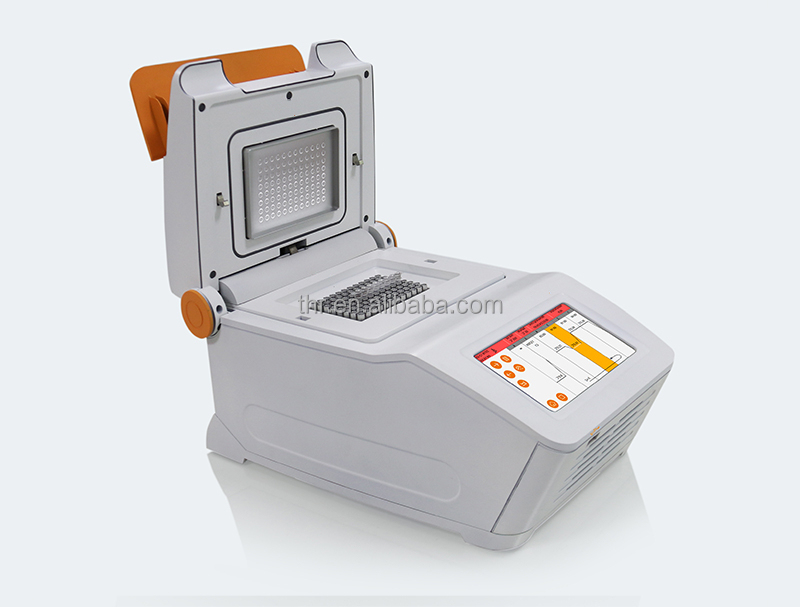

Easy to Press and Lock
1.Press and lock quickly
2.Damped rating shaft makes the hot lid can stop if you want
3.Adaptable to different tubes (except full skirt)
* The stock is large, welcome to order at any time!!
Specification
Model | THR-T821 |
Blocks | 0.2ml*96 wells, Aluminum |
Matching consumables | 96 Microplate(non-skirt/semi-skirt, except full skirt) Single/8-strip/12-strip tubes (tall/shorttubes, flat/dome tubes) |
lnput power | 100-240V～50/60Hz，600VA |
Dimension | 427*288*227 mm |
Net weight | 9.6kg |
Temperature control accuracy | +0.1℃ |
Block temperature precision | +0.1℃ |
Block temperature uniformity | +0.3°C@55°℃ |
Max. ramp rate | ≥5°C/s |
Temperature Control Technology | 3 Peltier independently control. Distributed auxiliary heating onblock edge. |
Display | 7"WVGA 64000, LED backlight, high sensitive touch screen. |
User friendly interface | Yes. Dynamic temperature and color background, animation running status,breathing light indication, buzzing prompt. |
Easy interfaces switch | Simple main interface, operating interface, dynamic curve, engineering interface. |
lnhibit Non-specific amplification | Yes. Before running the cycle program，the block is cooled to 10℃ until the hot lid temperature get set value during hot lid warming up. |
Adaptive lid | Auto adapts to various heights of tubes (high tube, low tube, flat top tube and dome tube). |
Smart gradient | Yes. Dynamic power control ensures that the temperature of each column reaches the target synchronously. |
Total time / Remain time prediction | Yes |
Block temperature calibration | Yes. Engineering mode only. |
Screen brightness adjustment | Yes |
